Tutorial 8 - Mouse spleen (SPOTS)
Load the required packages
[1]:
import os
import torch
import scanpy as sc
import importlib
import numpy as np
[2]:
from COSIE.data_preprocessing import load_data
from COSIE.utils import setup_seed
from COSIE.configure import get_default_config
from COSIE.COSIE_framework import COSIE_model
from COSIE.downstream_analysis import *
config = get_default_config()
setup_seed(config['training']['seed'])
Load Data
[3]:
file_path = './SPOTS'
[4]:
adata1_rna = sc.read_h5ad(os.path.join(file_path, 'adata_section1_rna.h5ad'))
adata1_adt = sc.read_h5ad(os.path.join(file_path, 'adata_section1_adt.h5ad'))
adata2_rna = sc.read_h5ad(os.path.join(file_path, 'adata_section2_rna.h5ad'))
adata2_adt = sc.read_h5ad(os.path.join(file_path, 'adata_section2_adt.h5ad'))
[5]:
adata1_rna.var_names_make_unique()
adata1_adt.var_names_make_unique()
adata2_rna.var_names_make_unique()
adata2_adt.var_names_make_unique()
[7]:
adata1_rna, adata1_adt, adata2_rna, adata2_adt
[7]:
(AnnData object with n_obs × n_vars = 2568 × 32285
var: 'gene_ids', 'feature_types', 'genome'
obsm: 'spatial',
AnnData object with n_obs × n_vars = 2568 × 21
obsm: 'spatial',
AnnData object with n_obs × n_vars = 2759 × 32285
obsm: 'location1', 'location2', 'spatial',
AnnData object with n_obs × n_vars = 2759 × 21
obsm: 'location1', 'location2', 'spatial')
Define the dictionary structure for input data
[8]:
data_dict = {
'RNA': [adata1_rna, adata2_rna],
'Protein': [adata1_adt, None],
}
The constructed data_dict will be processed by load_data function, which returns processed feature matrices and spatial coordinates.
[9]:
feature_dict, spatial_loc_dict, data_dict_processed = load_data(data_dict, n_comps=50)
-------- Processing shared modality RNA across sections --------
2025-06-10 16:45:27,612 - harmonypy - INFO - Computing initial centroids with sklearn.KMeans...
Running Harmony for RNA
2025-06-10 16:45:29,661 - harmonypy - INFO - sklearn.KMeans initialization complete.
2025-06-10 16:45:29,746 - harmonypy - INFO - Iteration 1 of 10
2025-06-10 16:45:31,525 - harmonypy - INFO - Iteration 2 of 10
2025-06-10 16:45:33,054 - harmonypy - INFO - Iteration 3 of 10
2025-06-10 16:45:34,511 - harmonypy - INFO - Iteration 4 of 10
2025-06-10 16:45:36,041 - harmonypy - INFO - Iteration 5 of 10
2025-06-10 16:45:37,417 - harmonypy - INFO - Iteration 6 of 10
2025-06-10 16:45:38,938 - harmonypy - INFO - Iteration 7 of 10
2025-06-10 16:45:39,793 - harmonypy - INFO - Iteration 8 of 10
2025-06-10 16:45:41,526 - harmonypy - INFO - Iteration 9 of 10
2025-06-10 16:45:42,270 - harmonypy - INFO - Iteration 10 of 10
2025-06-10 16:45:42,960 - harmonypy - INFO - Stopped before convergence
-------- Processing unique modality Protein for section 1 --------
Extracting spatial location for section 1
Extracting spatial location for section 2
[ ]:
Specify the Linkage Indicator
COSIE requires an indicator dictionary to specify the cross-section linkage used during training. The following ('s1', 's2'): [('RNA', 'RNA')] indicates that the RNA–RNA linkage between section s1 and s2 will be used as the cross-section linkage information.
[11]:
Linkage_indicator = {
('s1', 's2'): [ ('RNA', 'RNA')]
}
Define COSIE model and perform integration
After training, embeddings will be saved to file_path in .npy format for each section independently.
[12]:
model = COSIE_model(config, feature_dict)
optimizer = torch.optim.Adam(model.parameters(), lr=config['training']['lr'])
device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
print(f'Using device: {device}')
All modalities: ['RNA', 'Protein']
-------- Encoder description --------
Encoder [RNA]: Input 50 → Hidden [256, 128]
Encoder [Protein]: Input 20 → Hidden [256, 128]
-------- Dual prediction module description --------
Predictor [RNA → Protein]: [128, 512, 512, 128]
Predictor [Protein → RNA]: [128, 512, 512, 128]
Using device: cuda:0
[13]:
final_embeddings = model.train_model(file_path, config, optimizer, device, feature_dict, spatial_loc_dict,
data_dict_processed, Linkage_indicator)
-------- Running Full-graph training mode --------
Computing linkage between RNA (s1) and RNA (s2)
Model moved to cuda:0!
-------- Construction of input graphs --------
-------- Constructing spatial graph for s1 --------
Constructing feature graph for [s1 - RNA]...
Constructing feature graph for [s1 - Protein]...
-------- Constructing spatial graph for s2 --------
Constructing feature graph for [s2 - RNA]...
Training started!
Training Epochs: 100%|████████████████████████████████████████████████████████████████| 600/600 [00:11<00:00, 52.06it/s]
Running Evaluation...
Missing modality [Protein] in Section [s2]
Using predictor [RNA → Protein] to recover missing embedding...
All embeddings have been saved to ../../../project/SpatialMultimodal/datasets/SPOTS
[ ]:

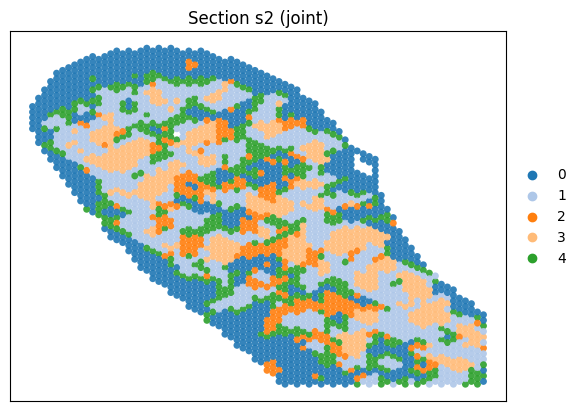

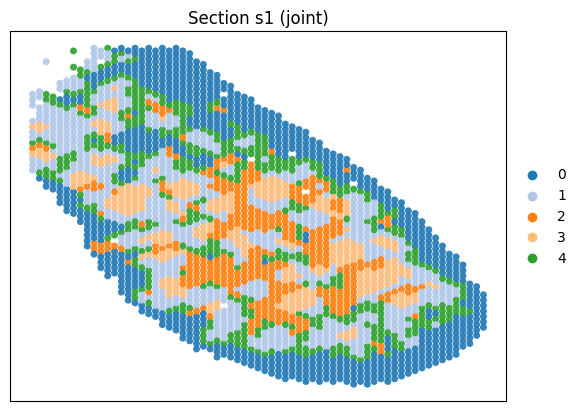

Joint clustering and visualization
Joing tissue segmentation based on COSIE’s embedding
[14]:
cluster_label = cluster_and_visualize(final_embeddings,
data_dict,
n_clusters=5,
mode="joint",
vis_basis="spatial",
s=100,
dpi = 300,)
Perform joint clustering...
Predict protein data for Section 2
COSIE recovers missing modality data for each section by leveraging feature similarity within its integrated embedding space.
Users can specify the section to be predicted, the modality to recover, the target molecules, and one or more source sections from which observed data will serve as the reference.
[15]:
adata2_adt_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's2',
target_modality = 'Protein',
K_num=50,
target_molecules='All',
)
Using modality [RNA] in section [s2] as spatial/obs reference
[Protein] exists in ['s1'], which will be used as source data section

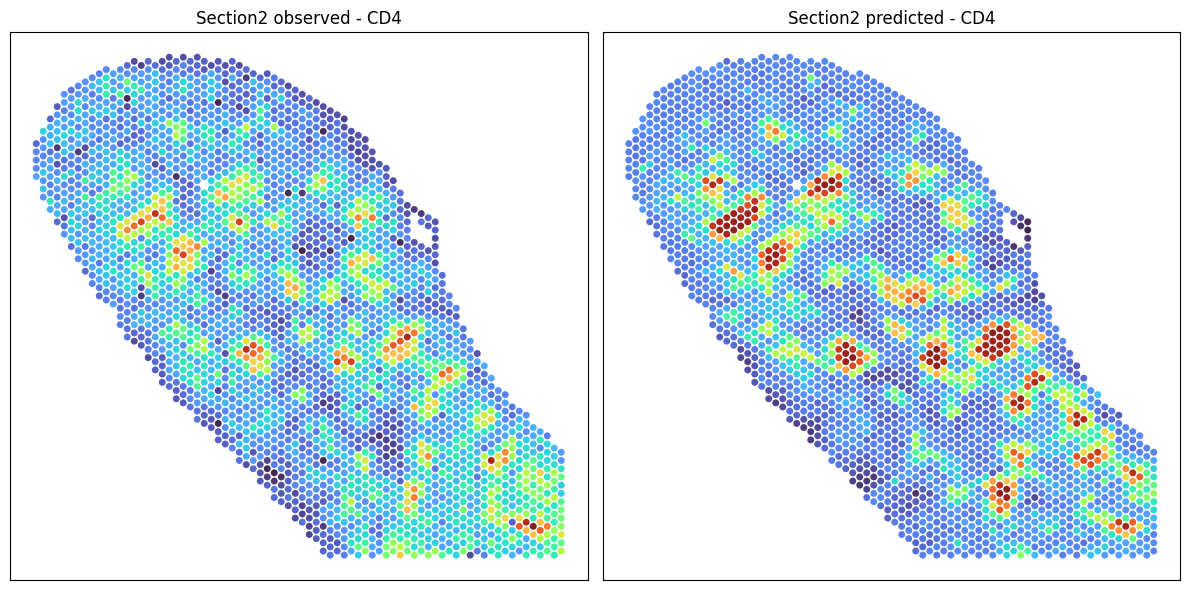

[16]:
chosed_protein = 'CD4'
plot_marker_comparison(chosed_protein,
adata2_adt,
adata2_adt_predicted,
section1_label = 'Section2 observed',
section2_label = 'Section2 predicted',
dpi = 200,
s=100)
[ ]:
