Tutorial 5 - Mouse embryo (Spatial Mux-seq)
[1]:
import os
import torch
import scanpy as sc
import importlib
import numpy as np
[ ]:
from COSIE.data_preprocessing import load_data
from COSIE.utils import setup_seed
from COSIE.configure import get_default_config
from COSIE.COSIE_framework import COSIE_model
from COSIE.downstream_analysis import *
config = get_default_config()
setup_seed(config['training']['seed'], 'strict')
Load data
[3]:
file_path = '../../../project/SpatialMultimodal/all_data/Spatial_mux_seq'
[4]:
adata1_27me3 = sc.read_h5ad(os.path.join(file_path, 'E13_50_1_H3K27me3.h5ad'))
adata1_27ac = sc.read_h5ad(os.path.join(file_path, 'E13_50_1_H3K27ac.h5ad'))
adata2_27me3 = sc.read_h5ad(os.path.join(file_path, 'E13_50_3_H3K27me3.h5ad'))
adata2_atac = sc.read_h5ad(os.path.join(file_path, 'E13_50_3_ATAC.h5ad'))
adata2_rna = sc.read_h5ad(os.path.join(file_path, 'E13_50_3_RNA.h5ad'))
adata2_4me3 = sc.read_h5ad(os.path.join(file_path, 'E13_50_3_H3K4me3.h5ad'))
adata1_27me3.obsm['spatial'] = adata1_27me3.obsm['spatial_local'].copy()
adata1_27ac.obsm['spatial'] = adata1_27ac.obsm['spatial_local'].copy()
adata2_27me3.obsm['spatial'] = adata2_27me3.obsm['spatial_local'].copy()
adata2_atac.obsm['spatial'] = adata2_atac.obsm['spatial_local'].copy()
adata2_rna.obsm['spatial'] = adata2_rna.obsm['spatial_local'].copy()
adata2_4me3.obsm['spatial'] = adata2_4me3.obsm['spatial_local'].copy()
[5]:
adata2_rna.var_names_make_unique()
Define the dictionary structure for input data
Each column denotes one section and None represents that the modality is missing in that section.
[6]:
data_dict = {
'H3K27me3': [adata1_27me3, adata2_27me3],
'H3K27ac': [adata1_27ac, None],
'ATAC': [None, adata2_atac],
'RNA': [None, adata2_rna],
'H3K4me3': [None, adata2_4me3]
}
[10]:
feature_dict, spatial_loc_dict, data_dict_processed = load_data(data_dict, hvg_num=3000, n_comps=50, target_sum=1e5)
-------- Processing shared modality H3K27me3 across sections --------
2025-04-30 20:43:55,507 - harmonypy - INFO - Computing initial centroids with sklearn.KMeans...
Running Harmony for H3K27me3
2025-04-30 20:43:57,923 - harmonypy - INFO - sklearn.KMeans initialization complete.
2025-04-30 20:43:57,977 - harmonypy - INFO - Iteration 1 of 10
2025-04-30 20:43:59,493 - harmonypy - INFO - Iteration 2 of 10
2025-04-30 20:44:00,850 - harmonypy - INFO - Iteration 3 of 10
2025-04-30 20:44:02,875 - harmonypy - INFO - Iteration 4 of 10
2025-04-30 20:44:04,156 - harmonypy - INFO - Iteration 5 of 10
2025-04-30 20:44:05,454 - harmonypy - INFO - Iteration 6 of 10
2025-04-30 20:44:06,757 - harmonypy - INFO - Converged after 6 iterations
-------- Processing unique modality H3K27ac for section 1 --------
-------- Processing unique modality ATAC for section 2 --------
-------- Processing unique modality RNA for section 2 --------
-------- Processing unique modality H3K4me3 for section 2 --------
Extracting spatial location for section 1
Extracting spatial location for section 2
[ ]:
Specify the linkage indicator
COSIE requires a indicator dictionary to specify the cross-section linkage used during training. Here we utilized all the available strong and weak linkages between two sections.
[11]:
Linkage_indicator = {
('s1', 's2'): [('H3K27me3', 'H3K27me3'), ('H3K27me3', 'ATAC'), ('H3K27me3', 'RNA'), ('H3K27me3', 'H3K4me3'),
('H3K27ac', 'H3K27me3'), ('H3K27ac', 'ATAC'), ('H3K27ac', 'RNA'), ('H3K27ac', 'H3K4me3')]
}
[ ]:
Define COSIE Model and Perform Integration
After training, embeddings will be saved to file_path in .npy format.
[12]:
model = COSIE_model(config, feature_dict)
optimizer = torch.optim.Adam(model.parameters(), lr=config['training']['lr'])
device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
print(f'Using device: {device}')
All modalities: ['H3K27me3', 'H3K27ac', 'ATAC', 'RNA', 'H3K4me3']
-------- Encoder description --------
Encoder [H3K27me3]: Input 50 → Hidden [256, 128]
Encoder [H3K27ac]: Input 50 → Hidden [256, 128]
Encoder [ATAC]: Input 50 → Hidden [256, 128]
Encoder [RNA]: Input 50 → Hidden [256, 128]
Encoder [H3K4me3]: Input 50 → Hidden [256, 128]
-------- Dual prediction module description --------
Predictor [H3K27me3 → H3K27ac]: [128, 512, 512, 128]
Predictor [H3K27ac → H3K27me3]: [128, 512, 512, 128]
Predictor [H3K27me3 → ATAC]: [128, 512, 512, 128]
Predictor [ATAC → H3K27me3]: [128, 512, 512, 128]
Predictor [H3K27me3 → RNA]: [128, 512, 512, 128]
Predictor [RNA → H3K27me3]: [128, 512, 512, 128]
Predictor [H3K27me3 → H3K4me3]: [128, 512, 512, 128]
Predictor [H3K4me3 → H3K27me3]: [128, 512, 512, 128]
Predictor [ATAC → RNA]: [128, 512, 512, 128]
Predictor [RNA → ATAC]: [128, 512, 512, 128]
Predictor [ATAC → H3K4me3]: [128, 512, 512, 128]
Predictor [H3K4me3 → ATAC]: [128, 512, 512, 128]
Predictor [RNA → H3K4me3]: [128, 512, 512, 128]
Predictor [H3K4me3 → RNA]: [128, 512, 512, 128]
Using device: cuda:0
[13]:
final_embeddings = model.train_model(file_path, config, optimizer, device, feature_dict, spatial_loc_dict,
data_dict_processed, Linkage_indicator)
-------- Running Full-graph training mode --------
Computing linkage between H3K27me3 (s1) and H3K27me3 (s2)
Computing linkage between H3K27me3 (s1) and ATAC (s2)
Selecting 3000 HVGs for H3K27me3 with 24333 genes for linkage construction
Selecting 3000 HVGs for ATAC with 24333 genes for linkage construction
Number of overlapping features: 535
Computing linkage between H3K27me3 (s1) and RNA (s2)
Selecting 3000 HVGs for H3K27me3 with 24333 genes for linkage construction
Selecting 3000 HVGs for RNA with 48440 genes for linkage construction
Number of overlapping features: 353
Computing linkage between H3K27me3 (s1) and H3K4me3 (s2)
Selecting 3000 HVGs for H3K27me3 with 24333 genes for linkage construction
Selecting 3000 HVGs for H3K4me3 with 24333 genes for linkage construction
Number of overlapping features: 533
Computing linkage between H3K27ac (s1) and H3K27me3 (s2)
Selecting 3000 HVGs for H3K27ac with 24333 genes for linkage construction
Selecting 3000 HVGs for H3K27me3 with 24333 genes for linkage construction
Number of overlapping features: 599
Computing linkage between H3K27ac (s1) and ATAC (s2)
Selecting 3000 HVGs for H3K27ac with 24333 genes for linkage construction
Selecting 3000 HVGs for ATAC with 24333 genes for linkage construction
Number of overlapping features: 1472
Computing linkage between H3K27ac (s1) and RNA (s2)
Selecting 3000 HVGs for H3K27ac with 24333 genes for linkage construction
Selecting 3000 HVGs for RNA with 48440 genes for linkage construction
Number of overlapping features: 647
Computing linkage between H3K27ac (s1) and H3K4me3 (s2)
Selecting 3000 HVGs for H3K27ac with 24333 genes for linkage construction
Selecting 3000 HVGs for H3K4me3 with 24333 genes for linkage construction
Number of overlapping features: 1476
Model moved to cuda:0!
-------- Construction of input graphs --------
-------- Constructing spatial graph for s1 --------
Constructing feature graph for [s1 - H3K27me3]...
Constructing feature graph for [s1 - H3K27ac]...
-------- Constructing spatial graph for s2 --------
Constructing feature graph for [s2 - H3K27me3]...
Constructing feature graph for [s2 - ATAC]...
Constructing feature graph for [s2 - RNA]...
Constructing feature graph for [s2 - H3K4me3]...
Training started!
Training Epochs: 100%|████████████████████████████████████████████████████████████████| 600/600 [02:42<00:00, 3.68it/s]
Running Evaluation...
Missing modality [ATAC] in Section [s1]
Using predictor [H3K27me3 → ATAC] to recover missing embedding...
Missing modality [RNA] in Section [s1]
Using predictor [H3K27me3 → RNA] to recover missing embedding...
Missing modality [H3K4me3] in Section [s1]
Using predictor [H3K27me3 → H3K4me3] to recover missing embedding...
Missing modality [H3K27ac] in Section [s2]
Using predictor [H3K27me3 → H3K27ac] to recover missing embedding...
All embeddings have been saved to ../../../project/SpatialMultimodal/all_data/Spatial_mux_seq

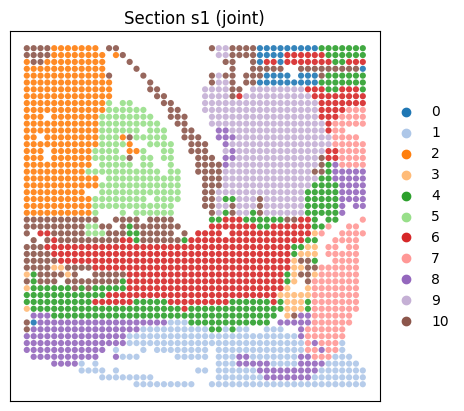

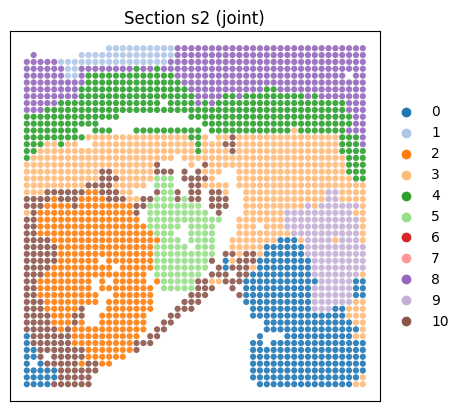

Perform clustering and visualization
[15]:
cluster_labels = cluster_and_visualize(final_embeddings,
data_dict,
n_clusters=11,
mode="joint",
vis_basis="spatial",
s=80,
plot_style='equal',
dpi = 500)
Perform joint clustering...
[ ]:
[ ]:
Predict ATAC for section1
[16]:
adata1_ATAC_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's1',
target_modality = 'ATAC',
K_num=50,
)
Using modality [H3K27me3] in section [s1] as spatial/obs reference
[ATAC] exists in ['s2'], which will be used as source data section
[17]:
adata1_ATAC_predicted_norm = create_normalized_adata(adata1_ATAC_predicted)
adata2_ATAC_norm = create_normalized_adata(adata2_atac)
[18]:
chosed_gene = 'Alb'
plot_marker_comparison(chosed_gene,
adata1_ATAC_predicted_norm,
adata2_ATAC_norm,
section1_label = 'Section1 predicted ATAC',
section2_label = 'Section2 observed ATAC',
dpi = 200,
s=220)
[ ]:

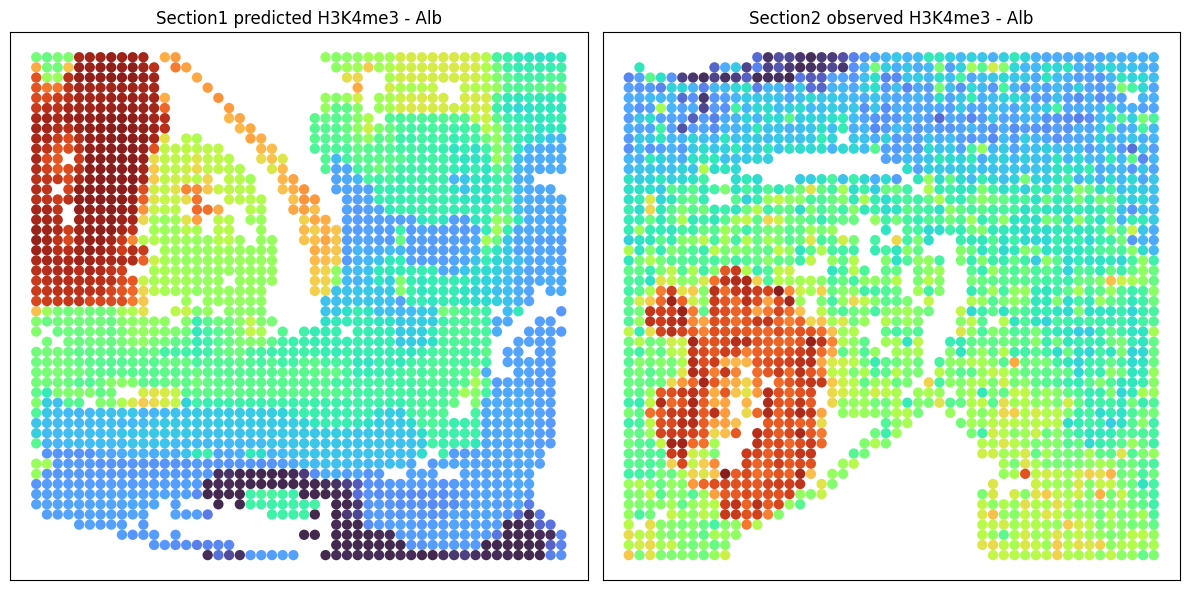

Predict H3K4me3 for section1
[20]:
adata1_H3K4me3_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's1',
target_modality = 'H3K4me3',
K_num=50,
)
Using modality [H3K27me3] in section [s1] as spatial/obs reference
[H3K4me3] exists in ['s2'], which will be used as source data section
[21]:
adata1_H3K4me3_predicted_norm = create_normalized_adata(adata1_H3K4me3_predicted)
adata2_H3K4me3_norm = create_normalized_adata(adata2_4me3)
[22]:
plot_marker_comparison(chosed_gene,
adata1_H3K4me3_predicted_norm,
adata2_H3K4me3_norm,
section1_label = 'Section1 predicted H3K4me3',
section2_label = 'Section2 observed H3K4me3',
dpi = 200,
s=220)
[ ]:
[ ]:

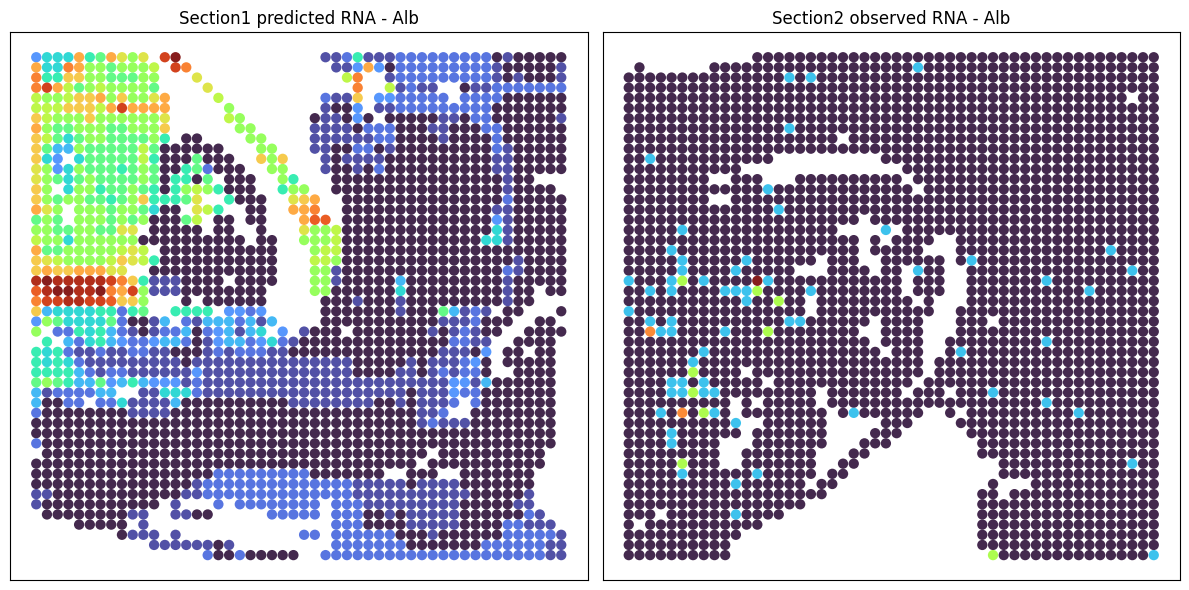

Predict RNA for section1
[23]:
adata1_RNA_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's1',
target_modality = 'RNA',
K_num=50,
)
Using modality [H3K27me3] in section [s1] as spatial/obs reference
[RNA] exists in ['s2'], which will be used as source data section
[25]:
adata1_RNA_predicted_norm = create_normalized_adata(adata1_RNA_predicted)
adata2_rna_norm = create_normalized_adata(adata2_rna)
plot_marker_comparison(chosed_gene,
adata1_RNA_predicted_norm,
adata2_rna_norm,
section1_label = 'Section1 predicted RNA',
section2_label = 'Section2 observed RNA',
dpi = 300,
s=220)
[ ]:

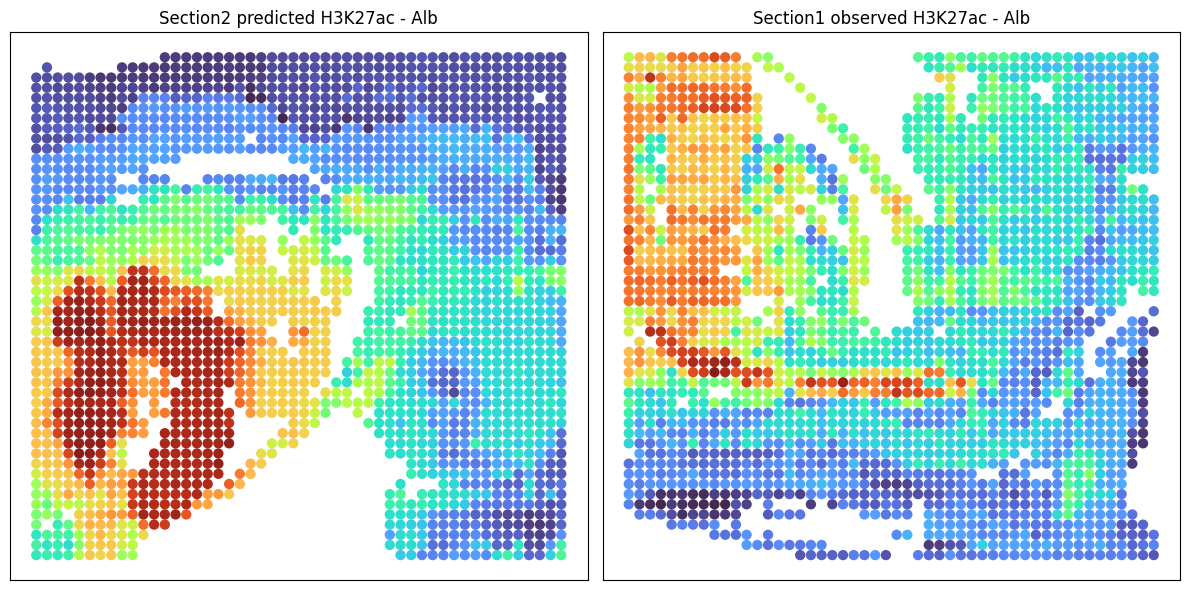

Predict H3K27ac for section2
[26]:
adata2_H3K27ac_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's2',
target_modality = 'H3K27ac',
K_num=50,
)
Using modality [H3K27me3] in section [s2] as spatial/obs reference
[H3K27ac] exists in ['s1'], which will be used as source data section
[27]:
adata2_H3K27ac_predicted_norm = create_normalized_adata(adata2_H3K27ac_predicted)
adata1_27ac_norm = create_normalized_adata(adata1_27ac)
[28]:
plot_marker_comparison(chosed_gene,
adata2_H3K27ac_predicted_norm,
adata1_27ac_norm,
section1_label = 'Section2 predicted H3K27ac',
section2_label = 'Section1 observed H3K27ac',
dpi = 300,
s=220)
[ ]:
