Tutorial 7 - Lung cancer (10x Visium Spatial Gene and Protein)
[1]:
import os
import torch
import scanpy as sc
import importlib
import numpy as np
[2]:
from COSIE.data_preprocessing import load_data
from COSIE.utils import setup_seed
from COSIE.configure import get_default_config
from COSIE.COSIE_framework import COSIE_model
from COSIE.downstream_analysis import *
config = get_default_config()
setup_seed(config['training']['seed'])
Load data
[3]:
file_path = '../../../project/SpatialMultimodal/all_data/Lung_cancer'
[4]:
adata1_rna = sc.read_h5ad(os.path.join(file_path, './P15_LUAD_Visium/adata_P15_LUAD_Visium_rna_istar.h5ad'))
adata1_adt = sc.read_h5ad(os.path.join(file_path, './P15_LUAD_Visium/adata_P15_LUAD_Visium_adt_istar.h5ad'))
adata2_rna = sc.read_h5ad(os.path.join(file_path, './P12_LUAD_Visium/adata_P12_LUAD_Visium_rna_istar.h5ad'))
adata2_adt = sc.read_h5ad(os.path.join(file_path, './P12_LUAD_Visium/adata_P12_LUAD_Visium_adt_istar.h5ad'))
adata3_rna = sc.read_h5ad(os.path.join(file_path, './P24_LUAD_Visium/adata_P24_LUAD_Visium_rna_istar.h5ad'))
adata3_adt = sc.read_h5ad(os.path.join(file_path, './P24_LUAD_Visium/adata_P24_LUAD_Visium_adt_istar.h5ad'))
adata4_rna = sc.read_h5ad(os.path.join(file_path, './P11_LUAD_Visium/adata_P11_LUAD_Visium_rna_istar.h5ad'))
adata4_adt = sc.read_h5ad(os.path.join(file_path, './P11_LUAD_Visium/adata_P11_LUAD_Visium_adt_istar.h5ad'))
adata1_rna, adata2_rna, adata3_rna, adata4_rna, adata1_adt, adata2_adt, adata3_adt, adata4_adt
[4]:
(AnnData object with n_obs × n_vars = 1007874 × 3000
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 643444 × 3000
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 538057 × 3000
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 836958 × 3000
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 1007874 × 35
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 643444 × 35
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 538057 × 35
obsm: 'UNI_feature', 'pxl_loc', 'spatial',
AnnData object with n_obs × n_vars = 836958 × 35
obsm: 'UNI_feature', 'pxl_loc', 'spatial')
[5]:
adata1_rna.var_names_make_unique()
adata2_rna.var_names_make_unique()
adata3_rna.var_names_make_unique()
adata4_rna.var_names_make_unique()
adata1_adt.var_names_make_unique()
adata2_adt.var_names_make_unique()
adata3_adt.var_names_make_unique()
adata4_adt.var_names_make_unique()
[6]:
adata1_he = sc.AnnData(X=adata1_adt.obsm['UNI_feature'])
adata2_he = sc.AnnData(X=adata2_adt.obsm['UNI_feature'])
adata3_he = sc.AnnData(X=adata3_adt.obsm['UNI_feature'])
adata4_he = sc.AnnData(X=adata4_adt.obsm['UNI_feature'])
adata1_he.obsm['spatial'] = adata1_adt.obsm['spatial'].copy()
adata2_he.obsm['spatial'] = adata2_adt.obsm['spatial'].copy()
adata3_he.obsm['spatial'] = adata3_adt.obsm['spatial'].copy()
adata4_he.obsm['spatial'] = adata4_adt.obsm['spatial'].copy()
adata1_he, adata2_he, adata3_he, adata4_he
[6]:
(AnnData object with n_obs × n_vars = 1007874 × 2048
obsm: 'spatial',
AnnData object with n_obs × n_vars = 643444 × 2048
obsm: 'spatial',
AnnData object with n_obs × n_vars = 538057 × 2048
obsm: 'spatial',
AnnData object with n_obs × n_vars = 836958 × 2048
obsm: 'spatial')
[ ]:
Define the dictionary structure for input data
Each column denotes one section and None represents that the modality is missing in that section.
[7]:
data_dict = {
'HE': [adata1_he, adata2_he, adata3_he, adata4_he],
'RNA': [adata1_rna, adata2_rna, None, None],
'Protein': [None, None, adata3_adt, None],
}
[8]:
feature_dict, spatial_loc_dict, data_dict_processed = load_data(data_dict, n_comps=50, metacell = True)
Combine adjacent 4 cells into metacell to save memory and speed up computation
-------- Processing shared modality HE across sections --------
Running Harmony for HE
2025-05-19 18:30:40,741 - harmonypy - INFO - Computing initial centroids with sklearn.KMeans...
2025-05-19 18:31:19,858 - harmonypy - INFO - sklearn.KMeans initialization complete.
2025-05-19 18:31:26,661 - harmonypy - INFO - Iteration 1 of 10
2025-05-19 18:36:28,391 - harmonypy - INFO - Iteration 2 of 10
2025-05-19 18:40:58,613 - harmonypy - INFO - Converged after 2 iterations
-------- Processing shared modality RNA across sections --------
Running Harmony for RNA
2025-05-19 18:42:50,557 - harmonypy - INFO - Computing initial centroids with sklearn.KMeans...
2025-05-19 18:43:11,966 - harmonypy - INFO - sklearn.KMeans initialization complete.
2025-05-19 18:43:15,342 - harmonypy - INFO - Iteration 1 of 10
2025-05-19 18:45:44,009 - harmonypy - INFO - Iteration 2 of 10
2025-05-19 18:48:19,920 - harmonypy - INFO - Iteration 3 of 10
2025-05-19 18:50:56,576 - harmonypy - INFO - Iteration 4 of 10
2025-05-19 18:53:30,398 - harmonypy - INFO - Iteration 5 of 10
2025-05-19 18:56:06,477 - harmonypy - INFO - Iteration 6 of 10
2025-05-19 18:58:46,791 - harmonypy - INFO - Iteration 7 of 10
2025-05-19 19:01:23,975 - harmonypy - INFO - Iteration 8 of 10
2025-05-19 19:03:57,133 - harmonypy - INFO - Converged after 8 iterations
-------- Processing unique modality Protein for section 3 --------
Extracting spatial location for section 1
Extracting spatial location for section 2
Extracting spatial location for section 3
Extracting spatial location for section 4
[ ]:
Specify the linkage indicator
COSIE requires a indicator dictionary to specify the cross-section linkage used during training.
For example, ('s1', 's2'): [('HE', 'HE'), ('RNA', 'RNA')] means both HE-HE and RNA-RNA linkage will be utilized for integrate Section s1 and s2.
[14]:
Linkage_indicator = {
('s1', 's2'): [('HE', 'HE'), ('RNA', 'RNA')],
('s1', 's3'): [('HE', 'HE'), ('RNA', 'Protein')],
('s1', 's4'): [('HE', 'HE')],
('s2', 's3'): [('HE', 'HE'), ('RNA', 'Protein')],
('s2', 's4'): [('HE', 'HE')],
('s3', 's4'): [('HE', 'HE')],
}
[ ]:
Define COSIE model and perform integration
After training, embeddings will be saved to file_path in .npy format.
[15]:
model = COSIE_model(config, feature_dict)
optimizer = torch.optim.Adam(model.parameters(), lr=config['training']['lr'])
device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
print(f'Using device: {device}')
All modalities: ['HE', 'RNA', 'Protein']
-------- Encoder description --------
Encoder [HE]: Input 50 → Hidden [256, 128]
Encoder [RNA]: Input 50 → Hidden [256, 128]
Encoder [Protein]: Input 20 → Hidden [256, 128]
-------- Dual prediction module description --------
Predictor [HE → RNA]: [128, 512, 512, 128]
Predictor [RNA → HE]: [128, 512, 512, 128]
Predictor [HE → Protein]: [128, 512, 512, 128]
Predictor [Protein → HE]: [128, 512, 512, 128]
Using device: cuda:0
[16]:
final_embeddings = model.train_model(file_path, config, optimizer, device, feature_dict, spatial_loc_dict,
data_dict_processed, Linkage_indicator, n_x=2, n_y=2)
-------- Running Sub-graph training mode, n_x is 2, n_y is 2 --------
Splitting section [s1] into 2 x 2 subgraphs
Splitting HE in section s1...
Splitting RNA in section s1...
Splitting section [s2] into 2 x 2 subgraphs
Splitting HE in section s2...
Splitting RNA in section s2...
Splitting section [s3] into 2 x 2 subgraphs
Splitting HE in section s3...
Splitting Protein in section s3...
Splitting section [s4] into 2 x 2 subgraphs
Splitting HE in section s4...
Computing linkage between [HE] (s1-0) and [HE] (s2-0)
Computing linkage between [RNA] (s1-0) and [RNA] (s2-0)
Computing linkage between [HE] (s1-0) and [HE] (s2-1)
Computing linkage between [RNA] (s1-0) and [RNA] (s2-1)
Computing linkage between [HE] (s1-0) and [HE] (s2-2)
Computing linkage between [RNA] (s1-0) and [RNA] (s2-2)
Computing linkage between [HE] (s1-0) and [HE] (s2-3)
Computing linkage between [RNA] (s1-0) and [RNA] (s2-3)
Computing linkage between [HE] (s1-1) and [HE] (s2-0)
Computing linkage between [RNA] (s1-1) and [RNA] (s2-0)
Computing linkage between [HE] (s1-1) and [HE] (s2-1)
Computing linkage between [RNA] (s1-1) and [RNA] (s2-1)
Computing linkage between [HE] (s1-1) and [HE] (s2-2)
Computing linkage between [RNA] (s1-1) and [RNA] (s2-2)
Computing linkage between [HE] (s1-1) and [HE] (s2-3)
Computing linkage between [RNA] (s1-1) and [RNA] (s2-3)
Computing linkage between [HE] (s1-2) and [HE] (s2-0)
Computing linkage between [RNA] (s1-2) and [RNA] (s2-0)
Computing linkage between [HE] (s1-2) and [HE] (s2-1)
Computing linkage between [RNA] (s1-2) and [RNA] (s2-1)
Computing linkage between [HE] (s1-2) and [HE] (s2-2)
Computing linkage between [RNA] (s1-2) and [RNA] (s2-2)
Computing linkage between [HE] (s1-2) and [HE] (s2-3)
Computing linkage between [RNA] (s1-2) and [RNA] (s2-3)
Computing linkage between [HE] (s1-3) and [HE] (s2-0)
Computing linkage between [RNA] (s1-3) and [RNA] (s2-0)
Computing linkage between [HE] (s1-3) and [HE] (s2-1)
Computing linkage between [RNA] (s1-3) and [RNA] (s2-1)
Computing linkage between [HE] (s1-3) and [HE] (s2-2)
Computing linkage between [RNA] (s1-3) and [RNA] (s2-2)
Computing linkage between [HE] (s1-3) and [HE] (s2-3)
Computing linkage between [RNA] (s1-3) and [RNA] (s2-3)
Computing linkage between [HE] (s1-0) and [HE] (s3-0)
Computing linkage between [RNA] (s1-0) and [Protein] (s3-0)
Number of overlapping features: 10
Computing linkage between [HE] (s1-0) and [HE] (s3-1)
Computing linkage between [RNA] (s1-0) and [Protein] (s3-1)
Number of overlapping features: 10
Computing linkage between [HE] (s1-0) and [HE] (s3-2)
Computing linkage between [RNA] (s1-0) and [Protein] (s3-2)
Number of overlapping features: 10
Computing linkage between [HE] (s1-0) and [HE] (s3-3)
Computing linkage between [RNA] (s1-0) and [Protein] (s3-3)
Number of overlapping features: 10
Computing linkage between [HE] (s1-1) and [HE] (s3-0)
Computing linkage between [RNA] (s1-1) and [Protein] (s3-0)
Number of overlapping features: 10
Computing linkage between [HE] (s1-1) and [HE] (s3-1)
Computing linkage between [RNA] (s1-1) and [Protein] (s3-1)
Number of overlapping features: 10
Computing linkage between [HE] (s1-1) and [HE] (s3-2)
Computing linkage between [RNA] (s1-1) and [Protein] (s3-2)
Number of overlapping features: 10
Computing linkage between [HE] (s1-1) and [HE] (s3-3)
Computing linkage between [RNA] (s1-1) and [Protein] (s3-3)
Number of overlapping features: 10
Computing linkage between [HE] (s1-2) and [HE] (s3-0)
Computing linkage between [RNA] (s1-2) and [Protein] (s3-0)
Number of overlapping features: 10
Computing linkage between [HE] (s1-2) and [HE] (s3-1)
Computing linkage between [RNA] (s1-2) and [Protein] (s3-1)
Number of overlapping features: 10
Computing linkage between [HE] (s1-2) and [HE] (s3-2)
Computing linkage between [RNA] (s1-2) and [Protein] (s3-2)
Number of overlapping features: 10
Computing linkage between [HE] (s1-2) and [HE] (s3-3)
Computing linkage between [RNA] (s1-2) and [Protein] (s3-3)
Number of overlapping features: 10
Computing linkage between [HE] (s1-3) and [HE] (s3-0)
Computing linkage between [RNA] (s1-3) and [Protein] (s3-0)
Number of overlapping features: 10
Computing linkage between [HE] (s1-3) and [HE] (s3-1)
Computing linkage between [RNA] (s1-3) and [Protein] (s3-1)
Number of overlapping features: 10
Computing linkage between [HE] (s1-3) and [HE] (s3-2)
Computing linkage between [RNA] (s1-3) and [Protein] (s3-2)
Number of overlapping features: 10
Computing linkage between [HE] (s1-3) and [HE] (s3-3)
Computing linkage between [RNA] (s1-3) and [Protein] (s3-3)
Number of overlapping features: 10
Computing linkage between [HE] (s1-0) and [HE] (s4-0)
Computing linkage between [HE] (s1-0) and [HE] (s4-1)
Computing linkage between [HE] (s1-0) and [HE] (s4-2)
Computing linkage between [HE] (s1-0) and [HE] (s4-3)
Computing linkage between [HE] (s1-1) and [HE] (s4-0)
Computing linkage between [HE] (s1-1) and [HE] (s4-1)
Computing linkage between [HE] (s1-1) and [HE] (s4-2)
Computing linkage between [HE] (s1-1) and [HE] (s4-3)
Computing linkage between [HE] (s1-2) and [HE] (s4-0)
Computing linkage between [HE] (s1-2) and [HE] (s4-1)
Computing linkage between [HE] (s1-2) and [HE] (s4-2)
Computing linkage between [HE] (s1-2) and [HE] (s4-3)
Computing linkage between [HE] (s1-3) and [HE] (s4-0)
Computing linkage between [HE] (s1-3) and [HE] (s4-1)
Computing linkage between [HE] (s1-3) and [HE] (s4-2)
Computing linkage between [HE] (s1-3) and [HE] (s4-3)
Computing linkage between [HE] (s2-0) and [HE] (s3-0)
Computing linkage between [RNA] (s2-0) and [Protein] (s3-0)
Number of overlapping features: 12
Computing linkage between [HE] (s2-0) and [HE] (s3-1)
Computing linkage between [RNA] (s2-0) and [Protein] (s3-1)
Number of overlapping features: 12
Computing linkage between [HE] (s2-0) and [HE] (s3-2)
Computing linkage between [RNA] (s2-0) and [Protein] (s3-2)
Number of overlapping features: 12
Computing linkage between [HE] (s2-0) and [HE] (s3-3)
Computing linkage between [RNA] (s2-0) and [Protein] (s3-3)
Number of overlapping features: 12
Computing linkage between [HE] (s2-1) and [HE] (s3-0)
Computing linkage between [RNA] (s2-1) and [Protein] (s3-0)
Number of overlapping features: 12
Computing linkage between [HE] (s2-1) and [HE] (s3-1)
Computing linkage between [RNA] (s2-1) and [Protein] (s3-1)
Number of overlapping features: 12
Computing linkage between [HE] (s2-1) and [HE] (s3-2)
Computing linkage between [RNA] (s2-1) and [Protein] (s3-2)
Number of overlapping features: 12
Computing linkage between [HE] (s2-1) and [HE] (s3-3)
Computing linkage between [RNA] (s2-1) and [Protein] (s3-3)
Number of overlapping features: 12
Computing linkage between [HE] (s2-2) and [HE] (s3-0)
Computing linkage between [RNA] (s2-2) and [Protein] (s3-0)
Number of overlapping features: 12
Computing linkage between [HE] (s2-2) and [HE] (s3-1)
Computing linkage between [RNA] (s2-2) and [Protein] (s3-1)
Number of overlapping features: 12
Computing linkage between [HE] (s2-2) and [HE] (s3-2)
Computing linkage between [RNA] (s2-2) and [Protein] (s3-2)
Number of overlapping features: 12
Computing linkage between [HE] (s2-2) and [HE] (s3-3)
Computing linkage between [RNA] (s2-2) and [Protein] (s3-3)
Number of overlapping features: 12
Computing linkage between [HE] (s2-3) and [HE] (s3-0)
Computing linkage between [RNA] (s2-3) and [Protein] (s3-0)
Number of overlapping features: 12
Computing linkage between [HE] (s2-3) and [HE] (s3-1)
Computing linkage between [RNA] (s2-3) and [Protein] (s3-1)
Number of overlapping features: 12
Computing linkage between [HE] (s2-3) and [HE] (s3-2)
Computing linkage between [RNA] (s2-3) and [Protein] (s3-2)
Number of overlapping features: 12
Computing linkage between [HE] (s2-3) and [HE] (s3-3)
Computing linkage between [RNA] (s2-3) and [Protein] (s3-3)
Number of overlapping features: 12
Computing linkage between [HE] (s2-0) and [HE] (s4-0)
Computing linkage between [HE] (s2-0) and [HE] (s4-1)
Computing linkage between [HE] (s2-0) and [HE] (s4-2)
Computing linkage between [HE] (s2-0) and [HE] (s4-3)
Computing linkage between [HE] (s2-1) and [HE] (s4-0)
Computing linkage between [HE] (s2-1) and [HE] (s4-1)
Computing linkage between [HE] (s2-1) and [HE] (s4-2)
Computing linkage between [HE] (s2-1) and [HE] (s4-3)
Computing linkage between [HE] (s2-2) and [HE] (s4-0)
Computing linkage between [HE] (s2-2) and [HE] (s4-1)
Computing linkage between [HE] (s2-2) and [HE] (s4-2)
Computing linkage between [HE] (s2-2) and [HE] (s4-3)
Computing linkage between [HE] (s2-3) and [HE] (s4-0)
Computing linkage between [HE] (s2-3) and [HE] (s4-1)
Computing linkage between [HE] (s2-3) and [HE] (s4-2)
Computing linkage between [HE] (s2-3) and [HE] (s4-3)
Computing linkage between [HE] (s3-0) and [HE] (s4-0)
Computing linkage between [HE] (s3-0) and [HE] (s4-1)
Computing linkage between [HE] (s3-0) and [HE] (s4-2)
Computing linkage between [HE] (s3-0) and [HE] (s4-3)
Computing linkage between [HE] (s3-1) and [HE] (s4-0)
Computing linkage between [HE] (s3-1) and [HE] (s4-1)
Computing linkage between [HE] (s3-1) and [HE] (s4-2)
Computing linkage between [HE] (s3-1) and [HE] (s4-3)
Computing linkage between [HE] (s3-2) and [HE] (s4-0)
Computing linkage between [HE] (s3-2) and [HE] (s4-1)
Computing linkage between [HE] (s3-2) and [HE] (s4-2)
Computing linkage between [HE] (s3-2) and [HE] (s4-3)
Computing linkage between [HE] (s3-3) and [HE] (s4-0)
Computing linkage between [HE] (s3-3) and [HE] (s4-1)
Computing linkage between [HE] (s3-3) and [HE] (s4-2)
Computing linkage between [HE] (s3-3) and [HE] (s4-3)
Model moved to cuda:0!
---------------- Constructing Full Graph ----------------
-------- Constructing full spatial graph for s1 --------
Constructing full feature graph for [s1 - HE]...
Constructing full feature graph for [s1 - RNA]...
-------- Constructing full spatial graph for s2 --------
Constructing full feature graph for [s2 - HE]...
Constructing full feature graph for [s2 - RNA]...
-------- Constructing full spatial graph for s3 --------
Constructing full feature graph for [s3 - HE]...
Constructing full feature graph for [s3 - Protein]...
-------- Constructing full spatial graph for s4 --------
Constructing full feature graph for [s4 - HE]...
---------------- Graph Construction in Subgraph Level ----------------
-------- Constructing spatial graphs for s1 - Subgraph 0 --------
-------- Constructing feature graph for [s1 - Subgraph 0 - HE] --------
-------- Constructing feature graph for [s1 - Subgraph 0 - RNA] --------
-------- Constructing spatial graphs for s1 - Subgraph 1 --------
-------- Constructing feature graph for [s1 - Subgraph 1 - HE] --------
-------- Constructing feature graph for [s1 - Subgraph 1 - RNA] --------
-------- Constructing spatial graphs for s1 - Subgraph 2 --------
-------- Constructing feature graph for [s1 - Subgraph 2 - HE] --------
-------- Constructing feature graph for [s1 - Subgraph 2 - RNA] --------
-------- Constructing spatial graphs for s1 - Subgraph 3 --------
-------- Constructing feature graph for [s1 - Subgraph 3 - HE] --------
-------- Constructing feature graph for [s1 - Subgraph 3 - RNA] --------
-------- Constructing spatial graphs for s2 - Subgraph 0 --------
-------- Constructing feature graph for [s2 - Subgraph 0 - HE] --------
-------- Constructing feature graph for [s2 - Subgraph 0 - RNA] --------
-------- Constructing spatial graphs for s2 - Subgraph 1 --------
-------- Constructing feature graph for [s2 - Subgraph 1 - HE] --------
-------- Constructing feature graph for [s2 - Subgraph 1 - RNA] --------
-------- Constructing spatial graphs for s2 - Subgraph 2 --------
-------- Constructing feature graph for [s2 - Subgraph 2 - HE] --------
-------- Constructing feature graph for [s2 - Subgraph 2 - RNA] --------
-------- Constructing spatial graphs for s2 - Subgraph 3 --------
-------- Constructing feature graph for [s2 - Subgraph 3 - HE] --------
-------- Constructing feature graph for [s2 - Subgraph 3 - RNA] --------
-------- Constructing spatial graphs for s3 - Subgraph 0 --------
-------- Constructing feature graph for [s3 - Subgraph 0 - HE] --------
-------- Constructing feature graph for [s3 - Subgraph 0 - Protein] --------
-------- Constructing spatial graphs for s3 - Subgraph 1 --------
-------- Constructing feature graph for [s3 - Subgraph 1 - HE] --------
-------- Constructing feature graph for [s3 - Subgraph 1 - Protein] --------
-------- Constructing spatial graphs for s3 - Subgraph 2 --------
-------- Constructing feature graph for [s3 - Subgraph 2 - HE] --------
-------- Constructing feature graph for [s3 - Subgraph 2 - Protein] --------
-------- Constructing spatial graphs for s3 - Subgraph 3 --------
-------- Constructing feature graph for [s3 - Subgraph 3 - HE] --------
-------- Constructing feature graph for [s3 - Subgraph 3 - Protein] --------
-------- Constructing spatial graphs for s4 - Subgraph 0 --------
-------- Constructing feature graph for [s4 - Subgraph 0 - HE] --------
-------- Constructing spatial graphs for s4 - Subgraph 1 --------
-------- Constructing feature graph for [s4 - Subgraph 1 - HE] --------
-------- Constructing spatial graphs for s4 - Subgraph 2 --------
-------- Constructing feature graph for [s4 - Subgraph 2 - HE] --------
-------- Constructing spatial graphs for s4 - Subgraph 3 --------
-------- Constructing feature graph for [s4 - Subgraph 3 - HE] --------
Training started!
Training Epochs: 100%|████████████████████████████████████████████████████████████████| 600/600 [22:29<00:00, 2.25s/it]
Running Evaluation...
Missing modality [Protein] in Section [s1]
Using predictor [HE → Protein] to recover missing embedding...
Mapping metacell embedding back to original cells for Section s1 using modality [HE]
Missing modality [Protein] in Section [s2]
Using predictor [HE → Protein] to recover missing embedding...
Mapping metacell embedding back to original cells for Section s2 using modality [HE]
Missing modality [RNA] in Section [s3]
Using predictor [HE → RNA] to recover missing embedding...
Mapping metacell embedding back to original cells for Section s3 using modality [HE]
Missing modality [RNA] in Section [s4]
Using predictor [HE → RNA] to recover missing embedding...
Missing modality [Protein] in Section [s4]
Using predictor [HE → Protein] to recover missing embedding...
Mapping metacell embedding back to original cells for Section s4 using modality [HE]
All embeddings have been saved to ../../../project/SpatialMultimodal/all_data/Lung_cancer
[ ]:

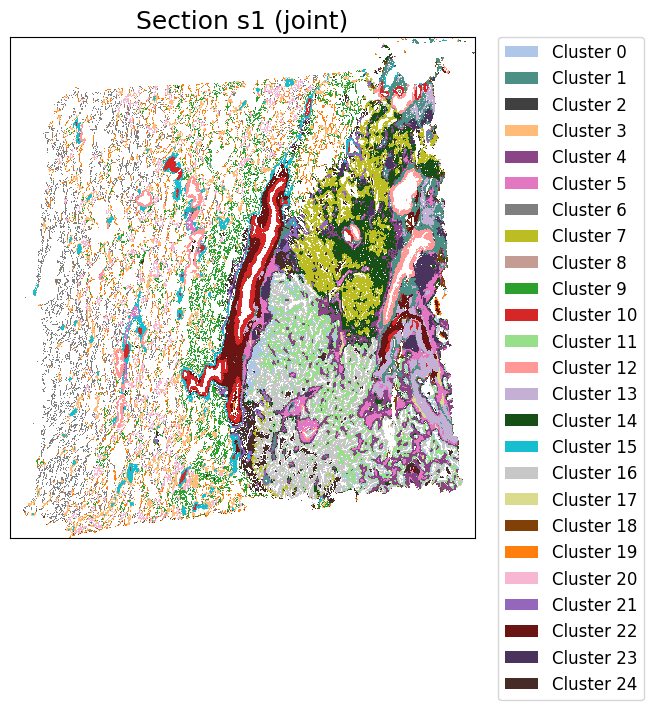

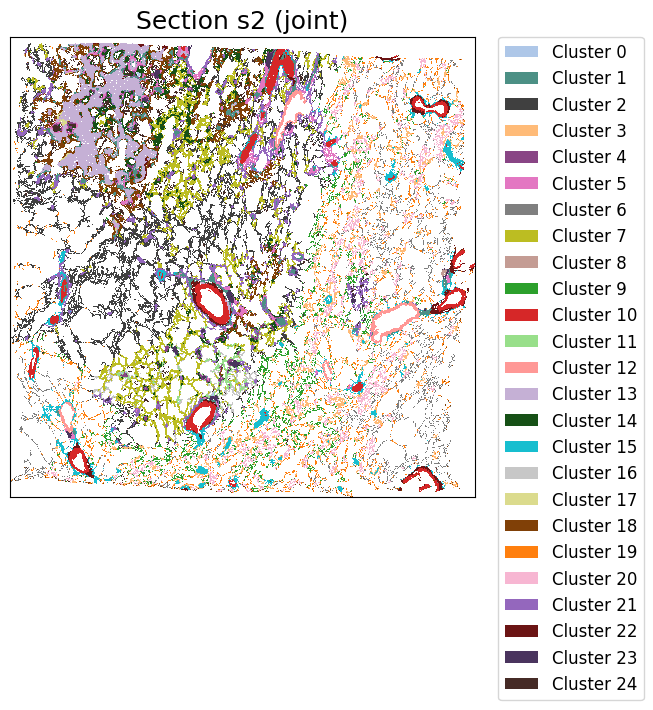

Perform clustering and visualization
[17]:
color_map = [[174,199,232],[76, 144, 133],[64,64,64],[255,187,120],
[137, 69, 133],[227,119,194],[127,127,127],[188,189,34],
[196,156,148],[44,160,44],[214,39,40],[152,223,138],
[255,152,150],[197,176,213],[22,80,22],[23,190,207],
[199,199,199],[219,219,141],[128,64,7],[255,127,14],
[247,182,210],[148,103,189],
[107,20,20],[74,52,94],[70,43,38],
[114,60,97],[94,94,17],[12,95,104],[0,0,0]]

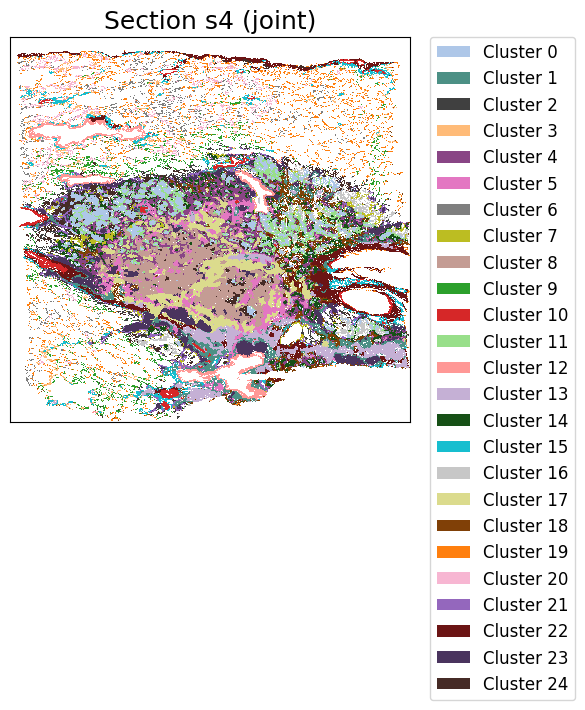

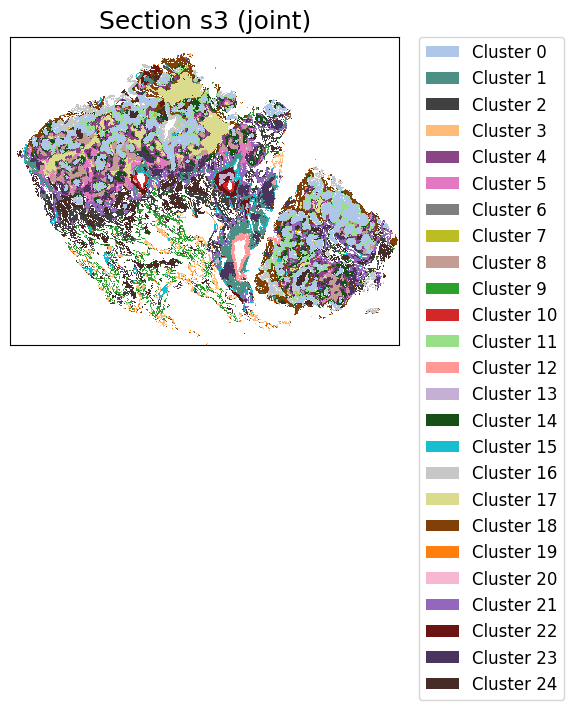

cluster_label = cluster_and_visualize_superpixel(final_embeddings,
data_dict,
n_clusters=25,
mode="joint",
vis_basis="spatial",
colormap = color_map,
save_path = './Figures/Lung_cancer/COSIE.jpg',
dpi = 500,
figscale = 220)
Perform joint clustering...
Saved: ./Figures/Lung_cancer/COSIE_section_s1.jpg
Saved: ./Figures/Lung_cancer/COSIE_section_s2.jpg
Saved: ./Figures/Lung_cancer/COSIE_section_s3.jpg
Saved: ./Figures/Lung_cancer/COSIE_section_s4.jpg
[18]:
merge_groups = [[1, 13, 22], [10, 15]] # Merge clusters
new_cluster_label = merge_clusters_to_new_ids(cluster_label, merge_groups)
sorted_cluster_label = relabel_clusters_sequentially(new_cluster_label)

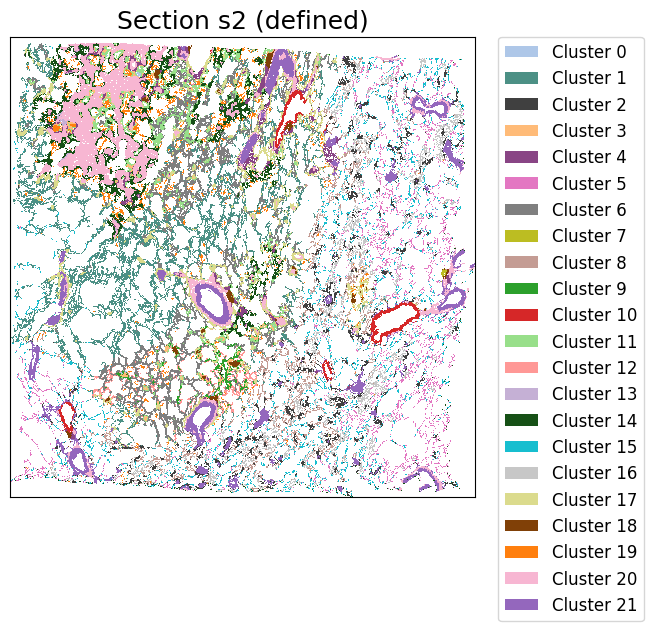

[19]:

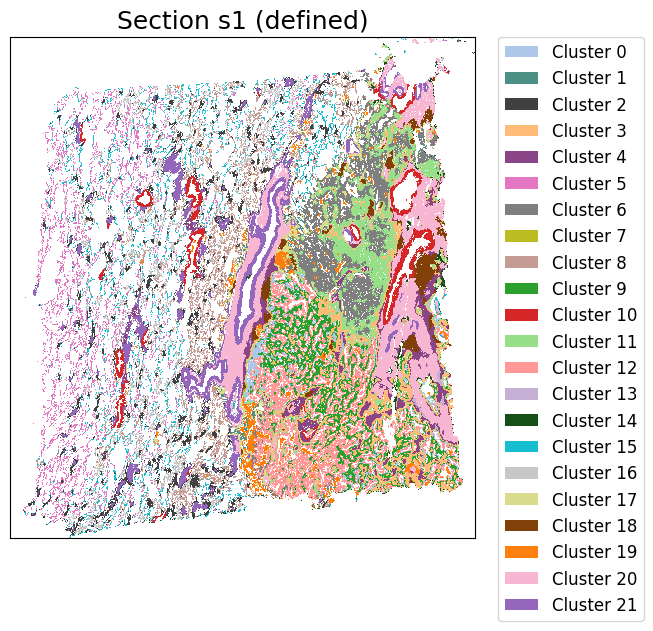

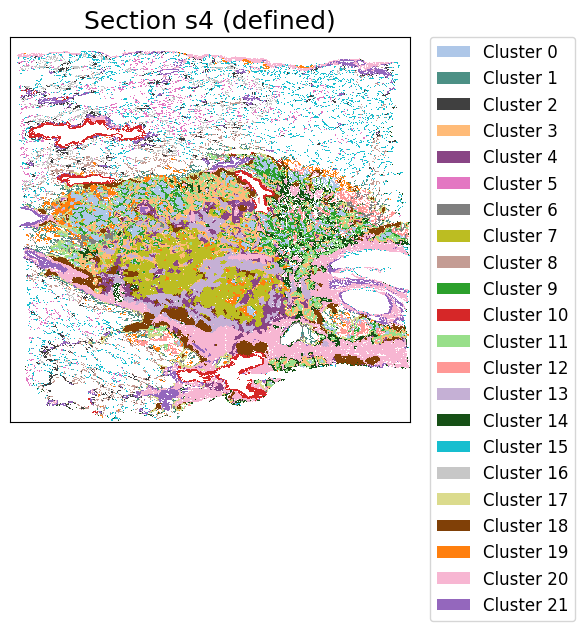

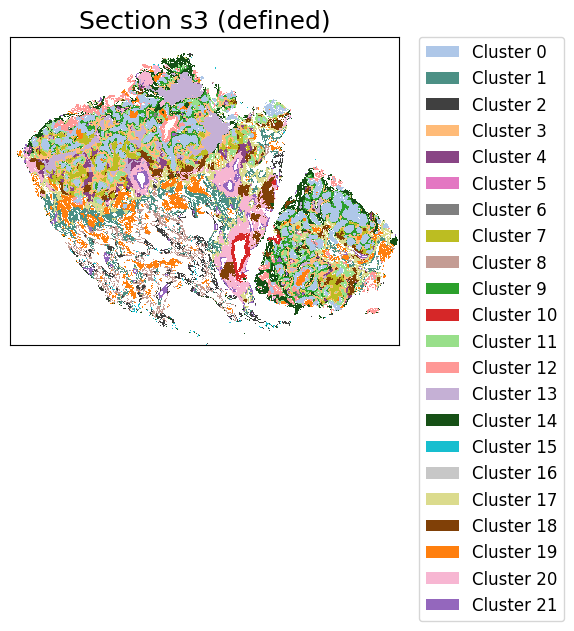

sorted_cluster_label_return = cluster_and_visualize_superpixel(final_embeddings,
data_dict,
n_clusters=22,
mode="defined",
defined_labels=sorted_cluster_label,
vis_basis="spatial",
colormap = color_map,
dpi = 500,
figscale = 220)
[ ]:

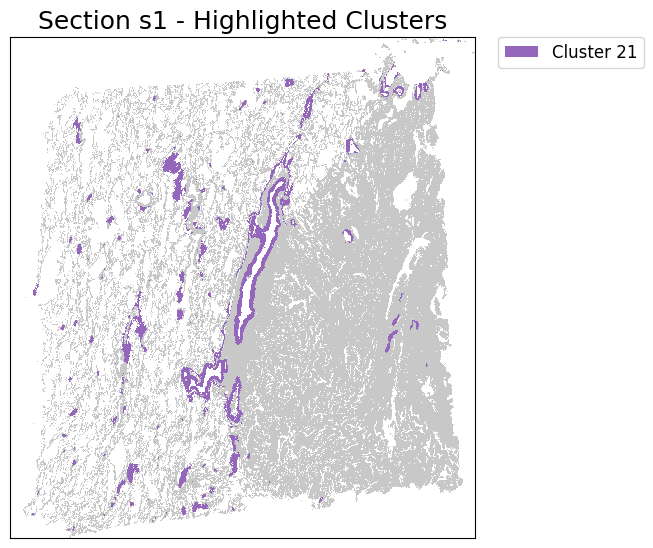

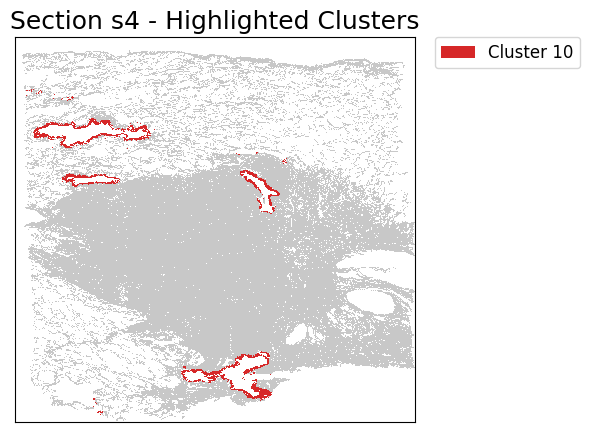

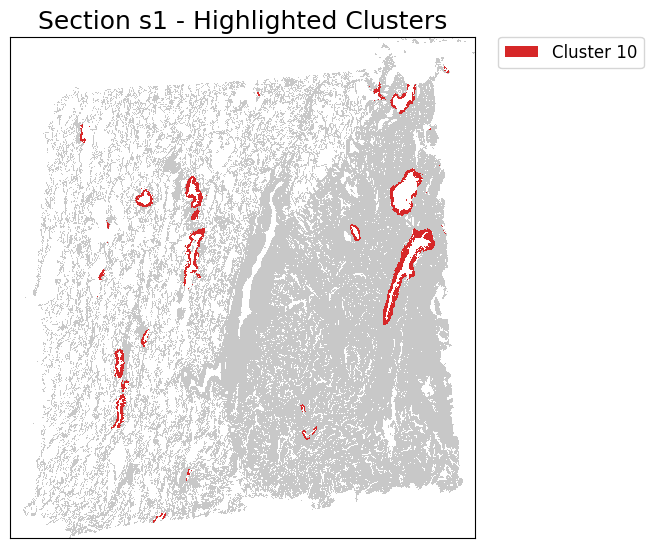

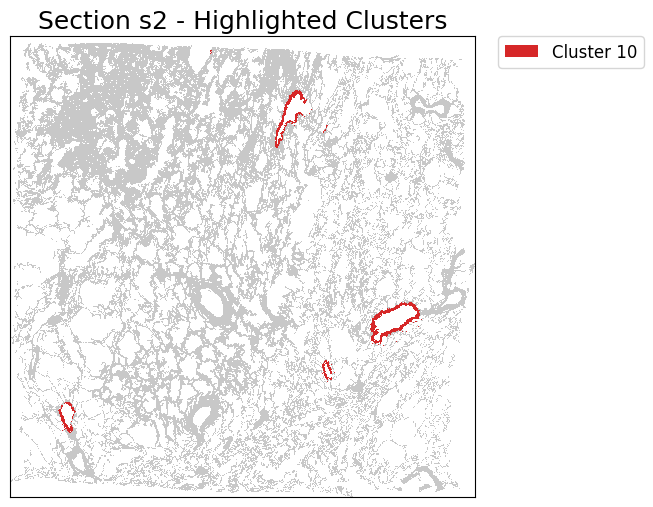

Highlight target cluster for better visualization
[20]:
highlight_joint_clusters_all_sections(
cluster_labels=sorted_cluster_label,
data_dict=data_dict,
n_clusters=22,
highlight_labels=[10] ,
vis_basis='spatial',
colormap = color_map,
figscale=220,
dpi=500,
remove_title=False,
remove_legend=False,
remove_spine=False,
bg_color = [200, 200, 200]
)

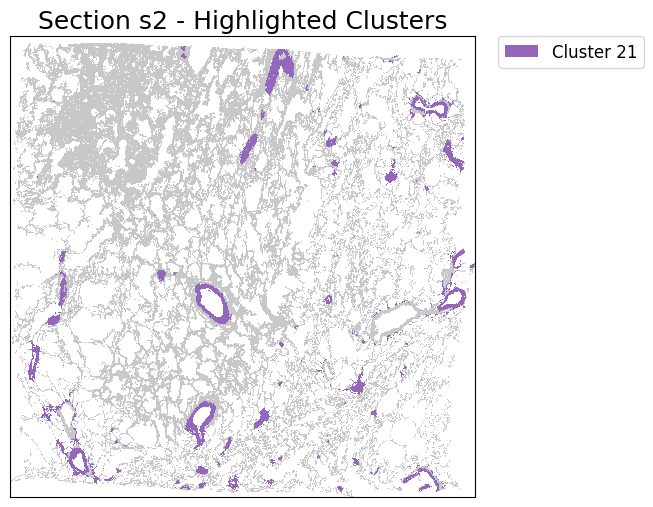

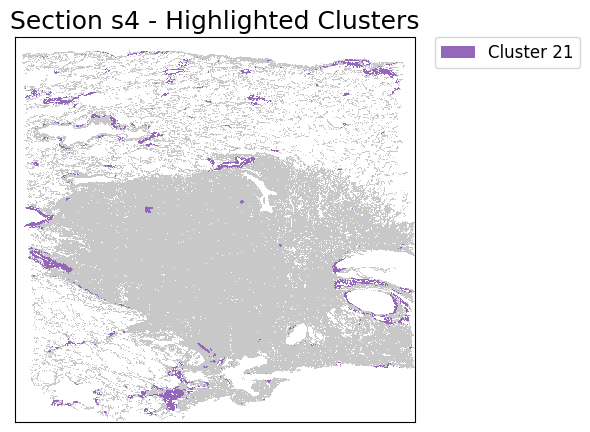

[21]:
highlight_joint_clusters_all_sections(
cluster_labels=sorted_cluster_label,
data_dict=data_dict,
n_clusters=22,
highlight_labels=[21] ,
vis_basis='spatial',
colormap = color_map,
figscale=220,
dpi=500,
remove_title=False,
remove_legend=False,
remove_spine=False,
bg_color = [200, 200, 200]
)
[ ]:
Perform prediction
For Section 4, only the H&E image was available during training. We focused on this most challenging scenario.
Protein prediction
[22]:
adata4_protein_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's4',
target_modality = 'Protein',
K_num=500,
target_molecules='All',
)
Using modality [HE] in section [s4] as spatial/obs reference
[Protein] exists in ['s3'], which will be used as source data section
[23]:
adata4_protein_predicted
[23]:
AnnData object with n_obs × n_vars = 836958 × 35
obsm: 'spatial'
[24]:
adata4_protein_predicted_norm = create_normalized_adata(adata4_protein_predicted)
adata4_adt_norm = create_normalized_adata(adata4_adt)
[25]:

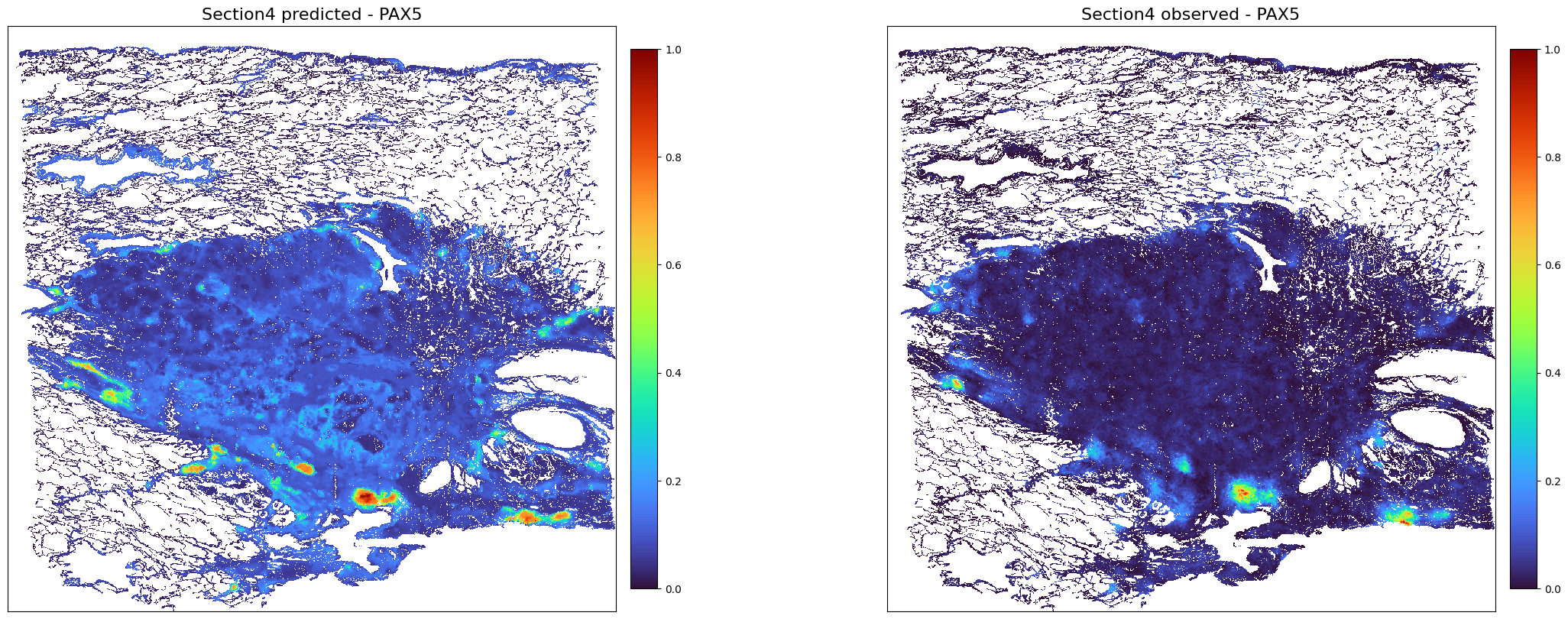

chosed_protein = 'PAX5'
plot_marker_comparison_superpixel(chosed_protein,
adata4_protein_predicted_norm,
adata4_adt_norm,
'Section4 predicted',
'Section4 observed',
figscale = 100)
[ ]:
Gene prediction
[82]:
adata4_gene_predicted = perform_prediction(data_dict,
final_embeddings,
target_section = 's4',
target_modality = 'RNA',
source_sections = ['s1','s2'],
K_num=500,
target_molecules='All',
)
Using modality [HE] in section [s4] as spatial/obs reference
Manually specify ['s1', 's2'] as source data
[83]:
adata4_gene_predicted_norm = create_normalized_adata(adata4_gene_predicted)
adata4_rna_norm = create_normalized_adata(adata4_rna)
[84]:

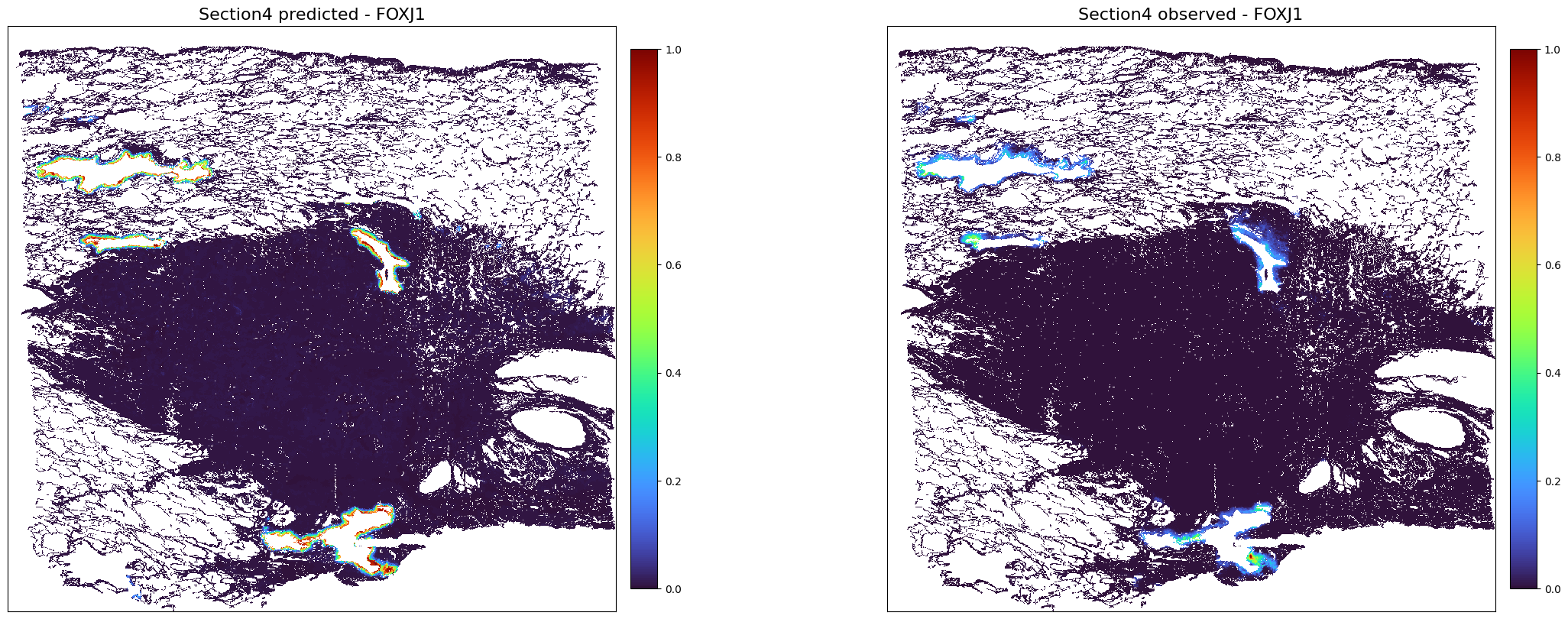

chosed_gene = 'FOXJ1'
plot_marker_comparison_superpixel(chosed_gene,
adata4_gene_predicted_norm,
adata4_rna_norm,
'Section4 predicted',
'Section4 observed',
figscale = 100,)
[ ]:
